Next-Generation Biomass Processing

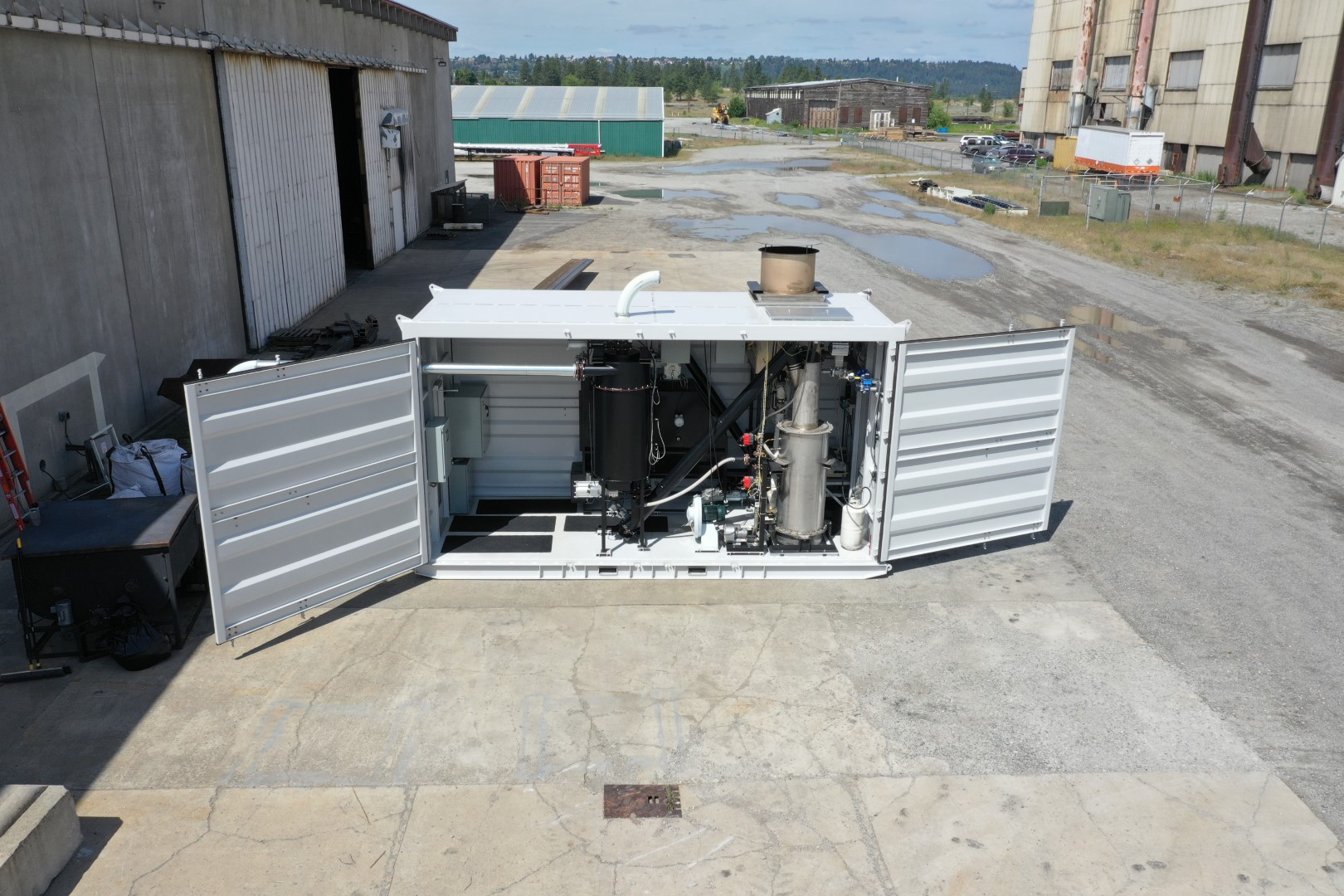

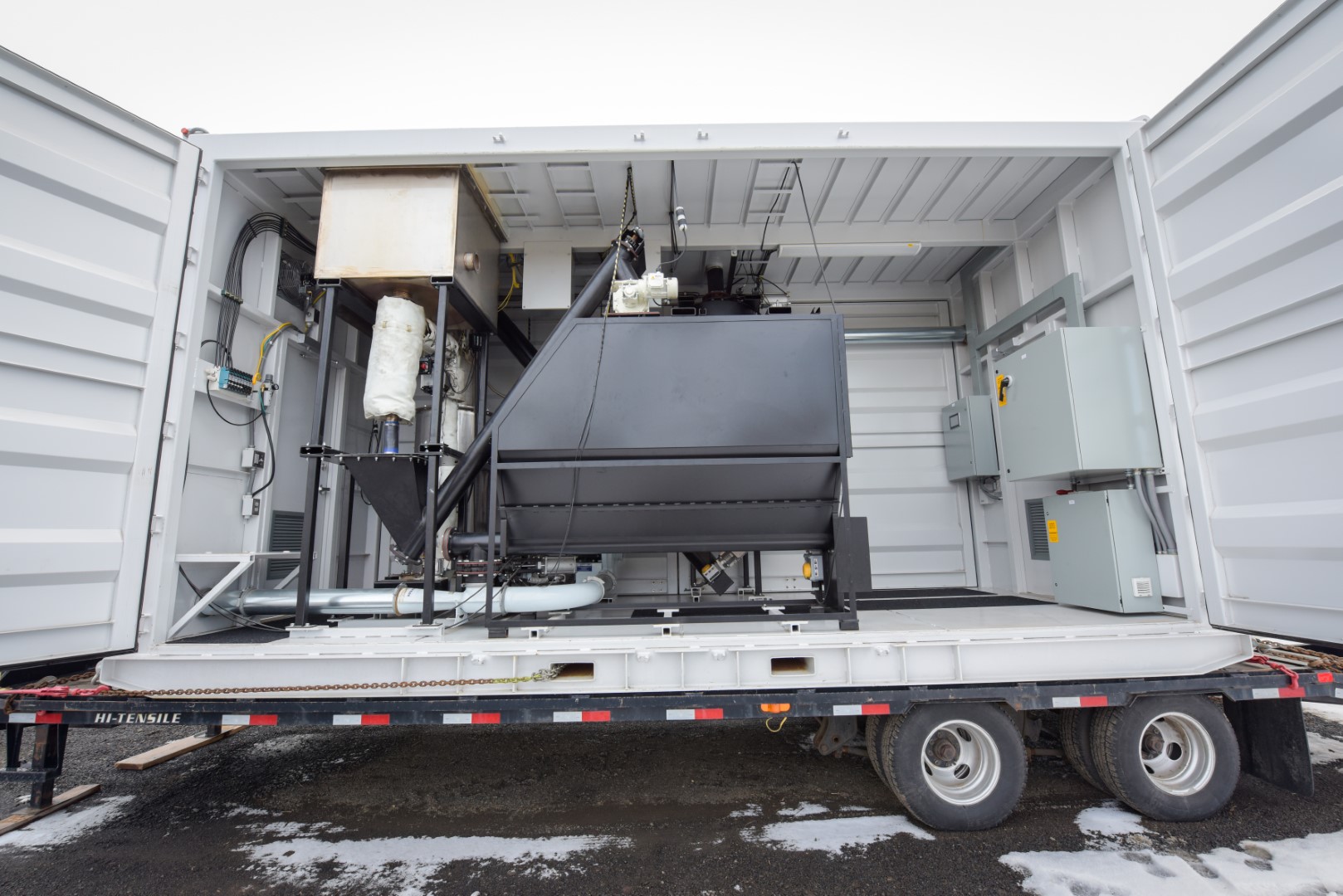

Qualterra’s patented biomass processing technology combines time-proven gasification and energy generating processes with modern, automated control systems to convert biomass into renewable energy and biochar. The Biomass Processing Unit (BPU) is housed in a rugged, modular shipping container and paired with various input and output modules, and is adaptable to accommodate a variety of biomass types and site requirements.

Highlights of our BPU Technology

  • Cleanly eliminates biomass waste.
  • Designed for high silica field residue to produce unique biochar derived from crops.
  • Controlled parameters to get consistent product every time.
  • Deployable, portable and scalable to meet demand.
  • Fully autonomous, continuous feed gasification system.
  • Eliminates waste and produces clean, renewable energy.
  • Designed for high volume manufacturing.
  • Technology covered by three US patents.

Qualterra biomass processing technologies reduce agricultural waste by turning it into biochar, a beneficial soil amendment, that improves plant health. Additionally, energy created by the biomass processing unit can then be captured and utilized in a variety of capacities.

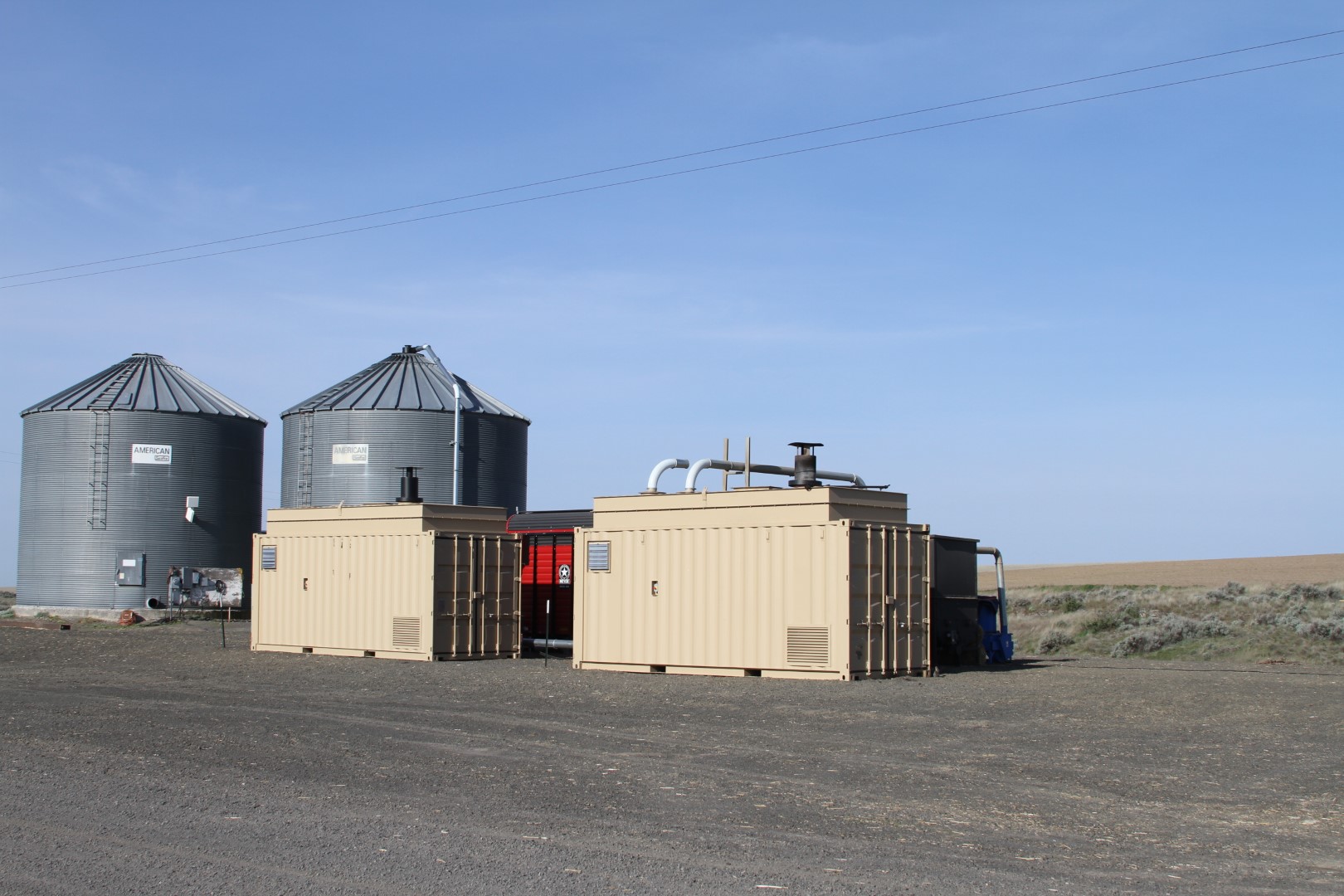

Biomass Processing Units Offer an Integrated Solution to Process Waste and Renew Soils

Most agricultural wastes, including those with high silica content, can be effectively processed using our Biomass Processing Unit. Our continuous flow design and remote monitoring means the system requires minimal management. Qualterra’s biomass processing engineers will work with you to design a Biomass Processing Unit that integrates with your existing systems. Unlike compost and other forms of biomass degradation, carbon is stably sequestered in biochar, reducing the environmental impact of your agricultural enterprise.

Syngas produced by the BPU can be used for heating or for generating electricity. It is frequently used to help offset energy costs of warehouses, greenhouses, or buildings.

Qualterra’s BPU is designed to produce a high-quality, consistent biochar product. While biochar can also be used as a filter media, its most common use is as a soil amendment which can boost crop yields, enhance soil health, and reduce water and fertilizer consumption. The unique and porous structure of biochar retains water and nutrients, leading to reduced nutrient leaching and improved water and nutrient use efficiency. Soil structure is improved by increasing pH and organic matter, leading to improved soil aggregation and providing a suitable host environment for increased microbial activity. Root growth is increased, and the improved root surface area aids in plant nutrient uptake. Biochar is a stable carbon structure lasting thousands of years in the soil, removing it from the atmosphere and providing valuable benefits for the farmer. In summary, biochar soil amendments can improve plant growth, health, and yield, while also mitigating climate change by sequestering carbon in the soil.

Technical Specifications

In a typical year, one BPU processing biomass can sequester and offset up to 664 tons of CO2

  • 450 ton of biomass processed
  • 850 yd3 of biochar generated
  • 570,000 kWh of energy created, which offsets 325 tons of CO2

It takes less than 1.5 months to offset the carbon used in manufacturing the BPU

  • Continuous monitoring of process temperatures, pressures, and flow rates
  • Remote operation via cellular network
  • Self-diagnosis and auto-correction
  • Fully enclosed
  • Automated shutdown

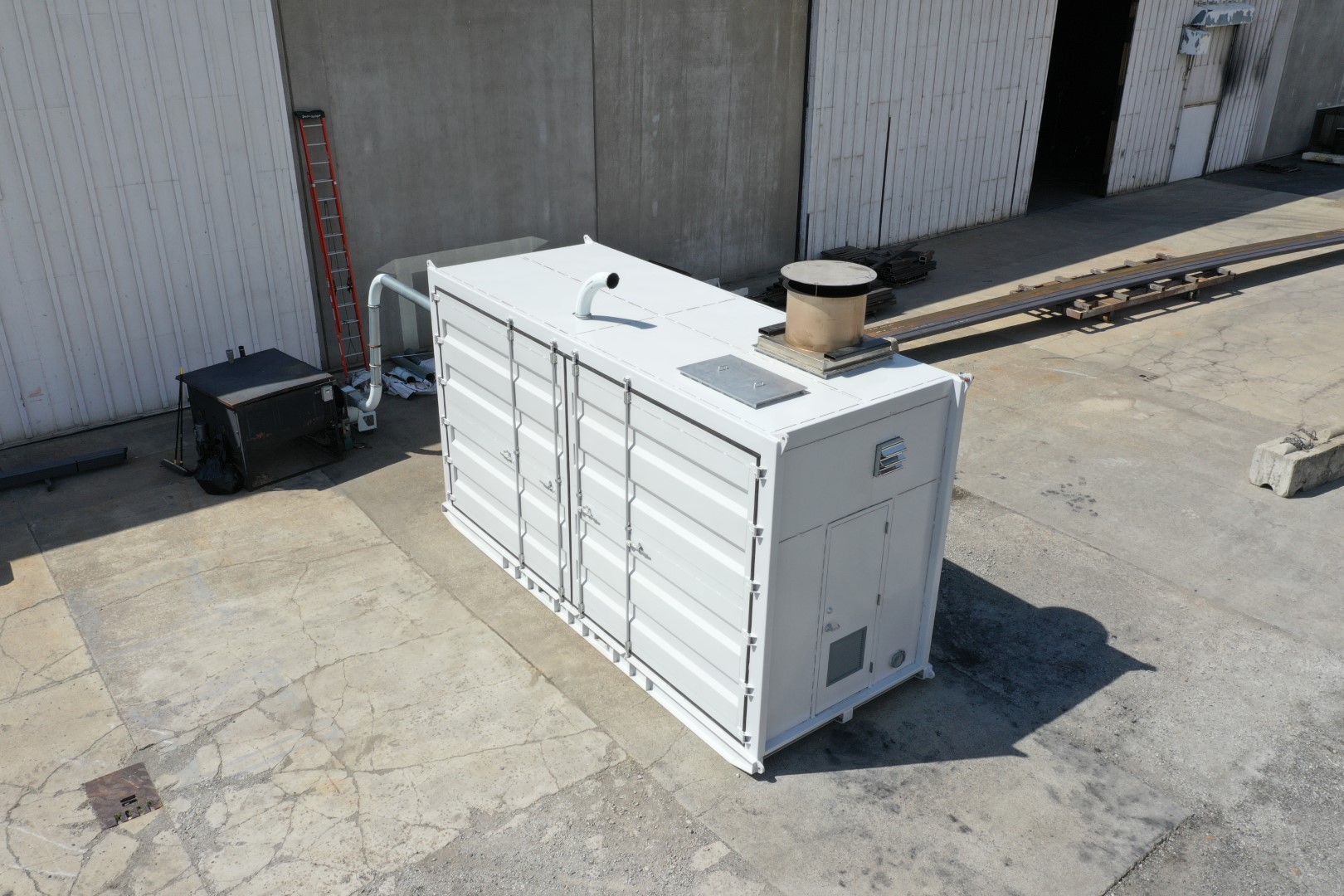

  • Fully ruggedized, mounted in a 20 ft shipping container
  • Movable from four standard lift and four standard jack points
  • Customizable input and output modules tailored to each user’s unique feedstock and energy needs
  • Controller selectable feedstock
  • Continuous feedstock supply offering unattended operation
  • Automated biochar offloading to existing external storage
  • Control system integrated across all feed and output modules
  • Equipment integrates seamlessly with each user’s operations and management
  • Standard connections to make installation simple

Dimensions 21’ x 8’ 5” x 14’ 3”

Operating Range 0º – 110ºF

Inputs

  • Chopped Biomass
    • Nominal 100-150 lbs per hour
    • Less than 20% moisture content
  • Electrical Power
    • Average 3kW
    • 208/240 AC 3ph or 1 ph
    • 10 kW peak power

Outputs

  • Syngas
    • Nominal 30-60 cfm
    • Nominal 10%-20% H2 content
    • Usable power output 75 kW
  • Activated biochar
    • Nominal 20-30 lbs. per hour
